ROPES FOR ROLLING SHUTTERS
FROM 1927 EUROFUNI SRL MANUFACTURES STEEL ROPES & CABLES HIGH QUALITY
ROPES FOR ROLLING SHUTTERS
| Construction: | 6(6+A.T.)+A.T. |
| Type: | TAPP 42 – Standard Galvanization |
| Single Wire Breaking Load: | 200Kg/mm² |

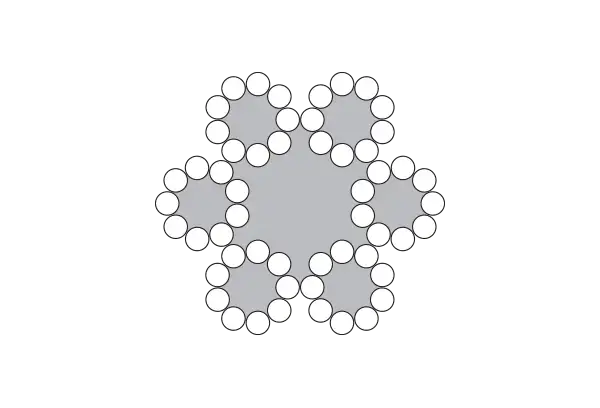

| Construction: | 6(9+A.T.)+A.T. |
| Type: | TAPP 54 – Standard Galvanization |
| Single Wire Breaking Load: | 200Kg/mm² |

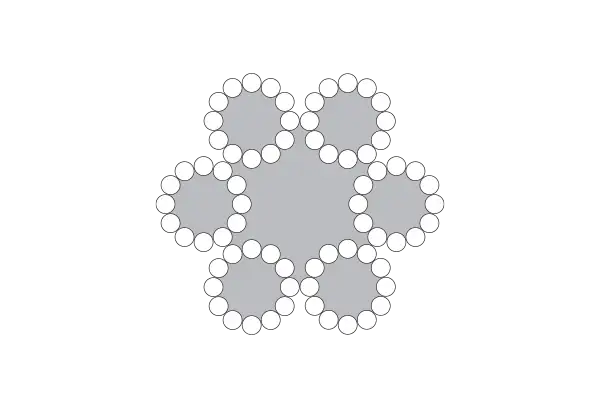

| Construction: | 6(12+A.T.)+A.T. |
| Type: | TAPP 72 – Standard Galvanization |
| Single Wire Breaking Load: | 200Kg/mm² |
| Notes: | very flexible, preformed |
| Uses: | Roller shutters, rolling shutters. |
technical specifications
| Diameter mm | Weight Kg/m | ROPE MIN. BREAKING LOAD IN KG WITH SINGLE WIRE MIN. BREAKING LOAD KG/MM² | TOT. METALLIC SECTION MM² |
|---|---|---|---|
| 200 | |||
| 1.8 (tap 42) | 0,013 | 230 | 1,32 |
| 2.4 (tap 54) | 0,019 | 300 | 1,69 |
| 3 (tap 72) | 0,025 | 400 | 2,26 |
THE VALUES CONTAINED IN THE DATA SHEET ARE THE RESULT OF THEORETICAL CALCULATIONS AND ARE THEREFORE TO BE CONSIDERED PURELY INDICATIVE AND NOT LEGALLY BINDING.
